RE334-LF | Roth Elektronik

Lab board, 100 x 160 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, RE334-LF

Order No.: 10H8198

EAN: 4099889462814

MPN:

RE334-LF

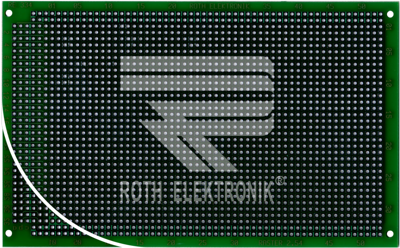

Image may differ

Key Specification:

Version lab board

One / two-sided double-sided

Material FR4 epoxy

Throughplated Yes

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6029

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6029

Order No.: 11H6029

Manufacturer: by.B

per pc. 11.8405 € *

Go to product

*incl. VAT plus shipping costs

Description

Prototyping board, RE334-LF, Roth Elektronik

Double-sided, 35 µm copper plating (through-plated); Format: 100 x 160 mm. Substrate: epoxy resin FR 4, hot-tinned (HAL lead-free). Grid: 2.54 x 2.54 mm. Hole matrix: 32 x 53 solder lands with diameter of 2.0 mm², option for installing connectors to DIN 41612 design C (32-, 64- and 96-pole). Hole diameter: 1.0 mm. Board thickness: 1.5 mm, component an solder side with solder resist coating and position labeling, component side with full copper plating.

Type: RE334-LF, 100 x 160 mm, epoxy resin.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	double-sided
	Material	FR4 epoxy
	Throughplated	Yes
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
