RE321-LF | Roth Elektronik

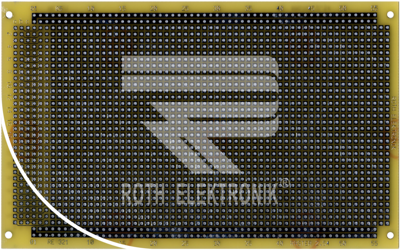

Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, RE321-LF

Order No.: 10H610

EAN: 4099889461572

MPN:

RE321-LF

Image may differ

Key Specification:

Version lab board

One / two-sided single sided

Material FR4 epoxy

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6000

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6000

Order No.: 11H6000

Manufacturer: by.B

per pc. 14.6013 € *

Go to product

*incl. VAT plus shipping costs

Description

Prototyping board, RE321-LF, Roth Elektronik

Format: 100 x 160 mm. Material: epoxy resin FR 4. Board thickness: 1.5 mm. Copper plating: both sides 35 µm, through-plated, hot-tinned (HAL lead-free). Connections: connectors DIN 41612 design C, 32-, 64- and 96-pole. Hole matrix: 36 x 55 solder lands, 2.0 mm². Hole diameter: 1.0 mm. Grid: 2.54 x 2.54 mm.

Type: RE321-LF, 100 x 160 mm, epoxy resin.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	single sided
	Material	FR4 epoxy
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
