RE317-HP | Roth Elektronik

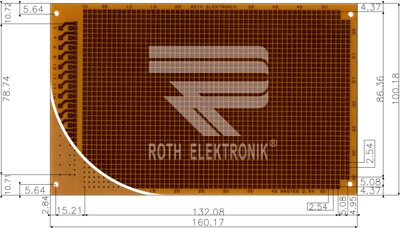

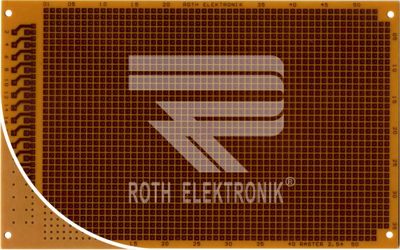

Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, RE317-HP

Order No.: 10H8186

EAN: 4099889462760

MPN:

RE317-HP

Image may differ

Key Specification:

Version lab board

One / two-sided single sided

Material FR2 hard paper

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6023

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR1 hard paper, Cu 35 µm, BYB-3-11H6023

Order No.: 11H6023

Manufacturer: by.B

per pc. 5.9143 € *

Go to product

*incl. VAT plus shipping costs

Description

Prototyping board, RE317-HP, Roth Elektronik

Single-sided with 35 µm copper plating. With option for installing connectors to DIN 41612 design C (32-pole; grid: 5.08 mm). Format: 100 x 160 mm. Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Grid: 2.54 x 2.54 mm. Hole matrix: 37 x 55 solder lands, 2.0 mm². Hole diameter: 1.0 mm. Board thickness: 1.5 mm.

Technical attributes (type, Format, substrate): RE317-HP, 100 x 160 mm, laminated paper.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	single sided
	Material	FR2 hard paper
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	organic surface protection (OSP)
