RE310-S1 | Roth Elektronik

Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, CEM3 laminate, Cu 35 µm, RE310-S1

Order No.: 10H8110

EAN: 4099889462647

MPN:

RE310-S1

Image may differ

Key Specification:

Version lab board

One / two-sided single sided

Material CEM3 laminate

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6017

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, CEM3 laminate, Cu 35 µm, BYB-3-11H6017

Order No.: 11H6017

Manufacturer: by.B

per pc. 7.7350 € *

Go to product

*incl. VAT plus shipping costs

Description

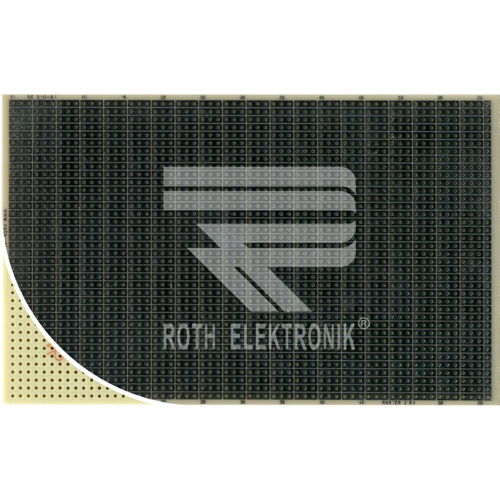

Prototyping board, RE310-S1, Roth Elektronik

Single-sided plating, lands with 3 holes, no standardized feature for installing connectors; substrate: CEM 3, 1.5 mm, with 35 µm Cu, HAL lead-free, grid: 2.54 x 2.54 mm, hole diameter: 1.0 mm.

Type: RE310-S1, 100 x 160 mm.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	single sided
	Material	CEM3 laminate
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
