Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, RE220-LF

Order No.: 10H8143

EAN: 4099889462685

MPN:

RE220-LF

Image may differ

Key Specification:

Version lab board

One / two-sided single sided

Material FR4 epoxy

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6019

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6019

Order No.: 11H6019

Manufacturer: by.B

per pc. 9.0797 € *

Go to product

*incl. VAT plus shipping costs

Description

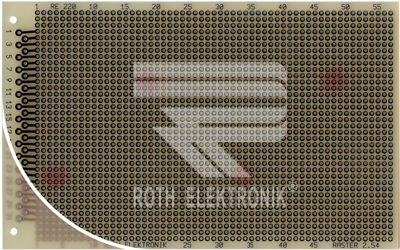

Prototyping board, RE220-LF, Roth Elektronik

Single-or double-sided, 35 µm copper plating. With option for installing connectors to DIN 41617 (31-pole); Hole matrix: grid 2.5 x 2.5 or 2.54 x 2.54 mm, 37 x 58 solder lands. Diameter of solder lands: 2.2 mm. Hole diameter: 1.0 mm. Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP) or epoxy resin FR 4, hot-tinned (HAL lead-free). Board thickness: 1.5 mm.

Single-sided plating, 2.54 x 2.54 mm grid, type RE220-.

Technical attributes (type, Format, substrate): RE220-LF, 100 x 160 mm, epoxy resin.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	single sided
	Material	FR4 epoxy
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
