RE210-S1 | Roth Elektronik

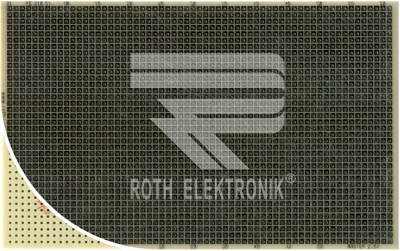

Circuit breadboard, 100 x 160 mm, pitch 2.54 mm, single sided, CEM3 laminate, Cu 35 µm, RE210-S1

Order No.: 10H700

EAN: 4099889462135

MPN:

RE210-S1

Image may differ

Key Specification:

Version breadboard

One / two-sided single sided

Material CEM3 laminate

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6043

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6043

Order No.: 11H6043

Manufacturer: by.B

per pc. 10.6505 € *

Go to product

*incl. VAT plus shipping costs

Description

Prototyping board, RE210-S1, Roth Elektronik

Without standardized connector receptacle; Hole diameter: 1.0 mm, single-sided 35 µm copper plating. Substrate: CEM 3, 1.5 mm, HAL lead-free. Grid: 2.54 x 2.54 mm.

With array of 38 x 61 solder lands, 2.2 mm², type RE210-S1.

Technical attributes (type, Format): RE210-S1, 100 x 160 mm.

Technical specifications

Filter	Property	Value
	Version	breadboard
	One / two-sided	single sided
	Material	CEM3 laminate
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 m
	Surface type	hot air leveling (HAL)
