Lab board, 100 x 160 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, RE201-LF-DS

Order No.: 10H8184

EAN: 4099889462753

MPN:

RE201-LF-DS

Image may differ

Key Specification:

Version lab board

One / two-sided double-sided

Material FR4 epoxy

Throughplated No

Grid 2.54 mm

Ordering Information:

Alternative items: 11H6022

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 100 x 160 mm, pitch 2.54 mm, double-sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6022

Order No.: 11H6022

Manufacturer: by.B

per pc. 15.3867 € *

Go to product

*incl. VAT plus shipping costs

Description

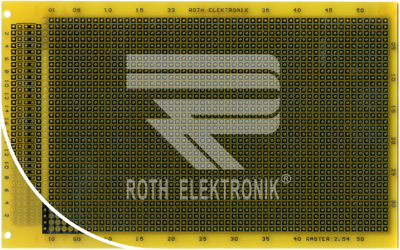

Prototyping board, RE201-LF-DS, Roth Elektronik

Double-sided with 35 µm copper plating. The component side is entirely coated, with holes etched free to prevent short-circuits on components. Users can connect this plating to ground potential to achieve maximum shielding of the electrical components against those on wiring side for a high degree of functional reliability of RF, digital and analog circuits; Format: 100 x 160 mm. Substrate: epoxy resin FR 4, hot-tinned (HAL lead-free). Grid: 2.54 x 2.54 mm. Hole matrix: 34 x 54 solder lands with diameter of 2.0 mm. Option for installing connectors to DIN 41612 design C, 32-, 64- and 96-pole. Hole diameter: 1.0 mm. Board thickness: 1.5 mm.

Type: RE201-LFDS, 100 x 160 mm, epoxy resin.

Technical specifications

Filter	Property	Value
	Version	lab board
	One / two-sided	double-sided
	Material	FR4 epoxy
	Throughplated	No
	Grid	2.54 mm
	Length	100 mm
	Width	160 mm
	Height	1.5 mm
	Hole diameter	1 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
