RE200-HP | Roth Elektronik
Lab board, 100 x 160 mm, pitch 2.54 mm, single sided, FR2 hard paper, Cu 35 µm, RE200-HP
Order No.: 11H188
EAN: 4099889463231
MPN:
RE200-HP
This item is no longer available.
As an alternative, we recommend the following item:
Circuit board, 100 x 160 mm, pitch 2.54 mm, single sided, FR1 hard paper, Cu 35 µm, BYB-3-11H6011
Order No.: 11H6011
Manufacturer: by.B
per pc. 5.9143 € *

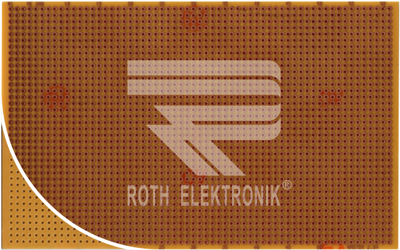

Prototyping board, RE200-HP, Roth Elektronik
Single-sided plating, 2.54 x 2.54 mm perforation matrix. With solder lands, no standardized connector receptacle.
Dimensions: 100 x 160 mm.
Hole diameter: 1.0 mm.
Substrate: phenolic resin laminated paper FR 2, organic surface protection (OSP).
Copper plating: 35 µm.
Board thickness: 1.5 mm.
Perforation matrix: 38 x 61 solder lands.
Diameter of solder lands: 2.2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | lab board | |
| One / two-sided | single sided | |
| Material | FR2 hard paper | |
| Throughplated | No | |
| Grid | 2.54 mm | |
| Length | 100 mm | |
| Width | 160 mm | |
| Height | 1.5 mm | |
| Hole diameter | 1 mm | |
| copper strength | 35 µm | |
| Surface type | organic surface protection (OSP) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85340019 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
