RE014-LF | Roth Elektronik

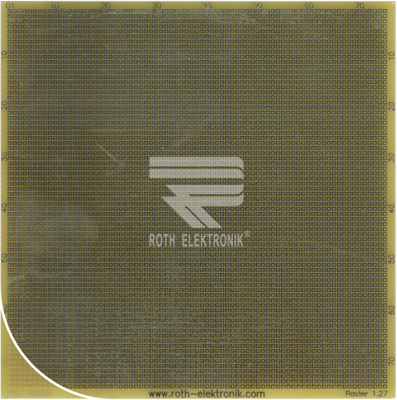

SMD laboratory board, 99.06 x 99.96 mm, pitch 1.27 mm, single sided, FR4 epoxy, Cu 35 µm, RE014-LF

Order No.: 10H6104

EAN: 4099889461602

MPN:

RE014-LF

Image may differ

Key Specification:

Version SMD laboratory board

One / two-sided single sided

Material FR4 epoxy

Throughplated No

Grid 1.27 mm

Ordering Information:

Alternative items: 11H6028

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Circuit board, 99 x 99 mm, pitch 1.27 mm, single sided, FR4 epoxy, Cu 35 µm, BYB-3-11H6028

Order No.: 11H6028

Manufacturer: by.B

per pc. 5.9143 € *

Go to product

*incl. VAT plus shipping costs

Description

Prototyping board, RE014-LF, Roth Elektronik

Single-sided 35 µm copper plating; Dimensions: 99.06 x 99.69 mm. Substrate: epoxy fiber-glass FR 4. Surface: HAL lead-free. Board thickness: 1.5 mm. Perforation layout: 75 x 75 solder pads. Solder pad diameter: 1.0 x 1.0 mm. Perforation diameter: 0.45 mm. Grid: 1.27 x 1.27 mm.

Type: RE014-LF, SMD prototyping boards, 99.06 x 99.69 mm.

Technical specifications

Filter	Property	Value
	Version	SMD laboratory board
	One / two-sided	single sided
	Material	FR4 epoxy
	Throughplated	No
	Grid	1.27 mm
	Length	99.06 mm
	Width	99.96 mm
	Height	1.5 mm
	Hole diameter	0.45 mm
	copper strength	35 µm
	Surface type	hot air leveling (HAL)
