332330110 | Rose

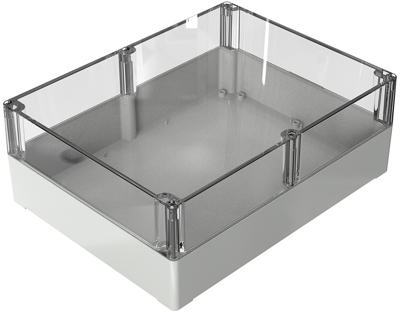

PC enclosure, (L x W x H) 300 x 230 x 110 mm, light gray/transparent (RAL 7035), IP65, 332330110
Order No.: 60H197
EAN: 4099889517392
MPN:
332330110
Unit Price (€ / pc.)
136.9690 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
136.97 € *
Price list
Quantity
Price per unit*
1 pcs.
136.9690 €
5 pcs.
130.1146 €
10 pcs.
123.6172 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic enclosures, type Multi-Box/Bopla/Rose.
Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc; Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: -40 to +80 °C/ -40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035.
Design: polycarbonate/macrolon, with clear lid.
Technical attributes (type, outer dimension, lid height (LH)): 33.2330110, W 230, L 300, H 110 mm, LH 55
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65 | |
| RAL number | 7035 | |
| Height | 110 mm | |
| Width | 230 mm | |
| Length | 300 mm | |
| Colour | light gray/transparent | |
| Material | PC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
