331624120 | Rose

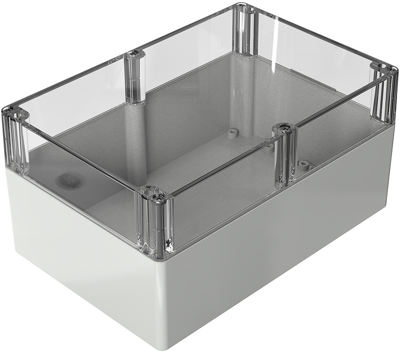

PC enclosure, (L x W x H) 240 x 160 x 120 mm, light gray/transparent (RAL 7035), IP65, 331624120
Order No.: 60H194
EAN: 4099889517385
MPN:
331624120
Unit Price (€ / pc.)
102.6256 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
102.63 € *
Price list
Quantity
Price per unit*
1 pcs.
102.6256 €
5 pcs.
97.4967 €
10 pcs.
92.6177 €
*incl. VAT plus shipping costs
Subject to prior sale
Plastic enclosures, type Multi-Box/Bopla/Rose.
Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc; Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: -40 to +80 °C/ -40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035.
Design: polycarbonate/macrolon, with clear lid.
Technical attributes (type, outer dimension, lid height (LH)): 33.1624120, W 160, L 240, H 120 mm, LH 45
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 240 mm | |
| Material | PC | |
| Width | 160 mm | |
| Height | 120 mm | |
| Degree of protection (IP) | IP65 | |
| Colour | light gray/transparent | |
| RAL number | 7035 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
