077120000 | Rose

AW+AIMgSi enclosure, (L x W x H) 80 x 185 x 105 mm, black, IP40, 077120000

Order No.: 60H2574
EAN: 4099889518269
MPN:
077120000
Series: MULTITRONIC
077120000 Rose General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
41.1026 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
41.10 € *
Price list
Quantity
Price per unit*
1 pcs.
41.1026 €
5 pcs.
39.0439 €
10 pcs.
37.1042 €
50 pcs.
35.2240 €
*incl. VAT plus shipping costs
Subject to prior sale

Rack enclosures made of aluminum, type Rose Multitronic.

EMC compliant version, with PCB guides and mounting groove with spring-cage nuts on the outside; PCB dimensions: max. 100 x 180 mm. Degree of protection: IP 40. Material: AW-AIMgSi, powder coated. Color: black. Thermal resistance: -40 to +100 °C.

With 4 mounting grooves.

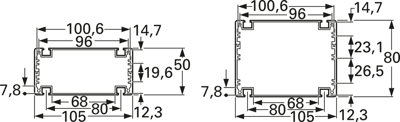

Technical attributes (type, PCB guides LF): 77.12 00 00, W 105 x L 185 x H 80 mm, 3 LF

Technical specifications
Filter Property Value
Material AW+AIMgSi
Width 185 mm
Degree of protection (IP) IP40
Length 80 mm
Height 105 mm
Colour black
Logistics
Property Value
Customs tariff number 85369095
Country of origin HU
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
