027020200 | Rose

PA handheld enclosure, (L x W x H) 187 x 106 x 50 mm, gray/black (RAL 7021), IP65, 027020200

Order No.: 50H5610
EAN: 4099889515800
MPN:
027020200
Series: BELUGA
027020200 Rose General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
23.5739 € *
Available: 2 pcs.
Total Price:
23.57 € *
Price list
Quantity
Price per unit*
1 pcs.
23.5739 €
5 pcs.
22.3958 €
10 pcs.
21.2891 €
*incl. VAT plus shipping costs
Subject to prior sale

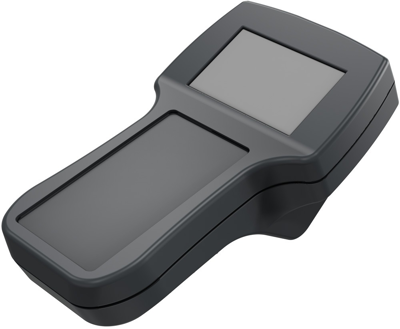

Portable console with display cut-out, type Rose Beluga 180 / 27.02 02 00

Ergonomic polyamide console for measuring and control/automation technology, with receptacle for membrane keyboards or silicon foam mats.

Degree of protection: IP 65

Impact resistance: min. 7.0 Joules

Combustibility: UL 94 V-2

Color: black-gray

Thermal resistance: - 40 to +60 °C

Dimensions: W 106/75, L 187, H 50 mm.

Display cut-out: 43 x 66 mm.

Technical specifications
Filter Property Value
Material PA
Width 106 mm
Degree of protection (IP) IP65
Length 187 mm
Height 50 mm
RAL number 7021
Colour gray/black
Logistics
Property Value
Customs tariff number 85369095
Country of origin RO
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
