012340110 | Rose

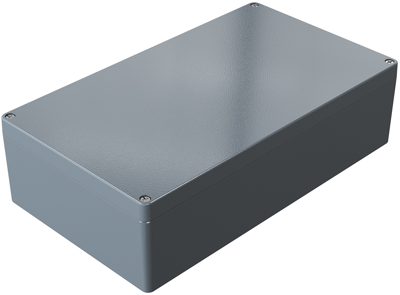

Aluminum enclosure, (L x W x H) 400 x 230 x 111 mm, silver gray (RAL 7001), IP66, 012340110
Order No.: 60H1200
EAN: 4099889516791
MPN:
012340110
Unit Price (€ / pc.)
279.4477 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
279.45 € *
Price list
Quantity
Price per unit*
1 pcs.
279.4477 €
5 pcs.
265.4652 €
10 pcs.
252.1967 €
*incl. VAT plus shipping costs
Subject to prior sale
Aluminum enclosures, type Rose 01.

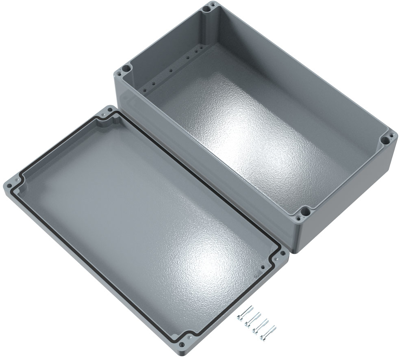

Rugged aluminum enclosure for use in the mechanical engineering and automation sector. Tongue-and-groove sealing system (all-round in the lid grooves). The screw channels are located outside of the sealing space. The mounting threads in the base bars facilitate the simple installation of mounting rails, switchgear, terminal blocks, etc; Material: DIN EN 1706 EN AC-AlSi 12 (Fe), powder coated. Seal: PU foam. Degree of protection to DIN 60529: IP 66. Impact resistance to EN 60079-0: 7.0 Joules. Color: silver-gray RAL 7001. Operating temperatures: -40 to +90 °C.
Technical attributes (type, outer dimensions, lid height (Lh), size of outside mounting strap): 01.23 40 11, W 230, L 400, H 110 mm, Lh 20, M 6
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Width | 230 mm | |
| Degree of protection (IP) | IP66 | |
| Length | 400 mm | |
| Height | 111 mm | |
| RAL number | 7001 | |
| Colour | silver gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
