011828100 | Rose

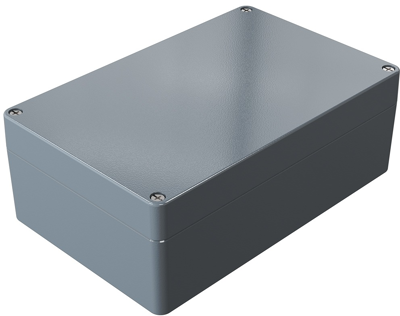

Aluminum enclosure, (L x W x H) 280 x 180 x 101 mm, silver gray (RAL 7001), IP66, 011828100
Order No.: 60H1188
EAN: 4099889516746
MPN:
011828100
Unit Price (€ / pc.)
132.5422 € *
Available: 3 pcs.
Total Price:
132.54 € *
Price list
Quantity
Price per unit*
1 pcs.
132.5422 €
3 pcs.
125.9258 €
10 pcs.
119.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
Aluminum enclosures, type Rose 01.
Rugged aluminum enclosure for use in the mechanical engineering and automation sector. Tongue-and-groove sealing system (all-round in the lid grooves). The screw channels are located outside of the sealing space. The mounting threads in the base bars facilitate the simple installation of mounting rails, switchgear, terminal blocks, etc; Material: DIN EN 1706 EN AC-AlSi 12 (Fe), powder coated. Seal: PU foam. Degree of protection to DIN 60529: IP 66. Impact resistance to EN 60079-0: 7.0 Joules. Color: silver-gray RAL 7001. Operating temperatures: -40 to +90 °C.
Technical attributes (type, outer dimensions, lid height (Lh), size of outside mounting strap): 01.18 28 10, W 180, L 280, H 100 mm, Lh 30, M 6
Technical specifications
| Colour | silver gray | |
| Length | 280 mm | |
| RAL number | 7001 | |
| Height | 101 mm | |
| Width | 180 mm | |
| Degree of protection (IP) | IP66 | |
| Material | aluminum |
Download
Logistics
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
