011020080 | Rose
Aluminum enclosure, (L x W x H) 200 x 100 x 81 mm, silver gray (RAL 7001), IP66, 011020080
Order No.: 60H1104
EAN: 4099889516609
MPN:
011020080
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
79.8133 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
79.81 € *
Price list
Quantity
Price per unit*
1 pcs.
79.8133 €
5 pcs.
75.8268 €
10 pcs.
72.0307 €
*incl. VAT plus shipping costs
Subject to prior sale

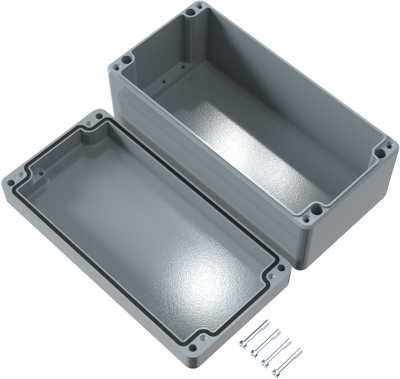

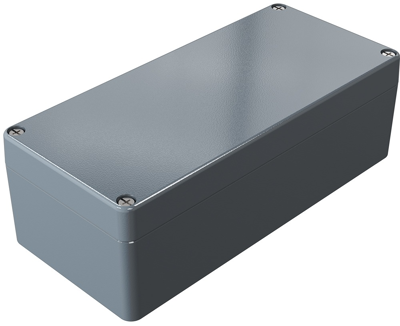

Aluminum enclosures, type Rose 01.
Rugged aluminum enclosure for use in the mechanical engineering and automation sector. Tongue-and-groove sealing system (all-round in the lid grooves). The screw channels are located outside of the sealing space. The mounting threads in the base bars facilitate the simple installation of mounting rails, switchgear, terminal blocks, etc; Material: DIN EN 1706 EN AC-AlSi 12 (Fe), powder coated. Seal: PU foam. Degree of protection to DIN 60529: IP 66. Impact resistance to EN 60079-0: 7.0 Joules. Color: silver-gray RAL 7001. Operating temperatures: -40 to +90 °C.
Technical attributes (type, outer dimensions, lid height (Lh), size of outside mounting strap): 01.10 20 08, W 100, L 200, H 80 mm, Lh 20, M 4
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Length | 200 mm | |
| Width | 100 mm | |
| Height | 81 mm | |
| Colour | silver gray | |
| RAL number | 7001 | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
