007504012 | Rose

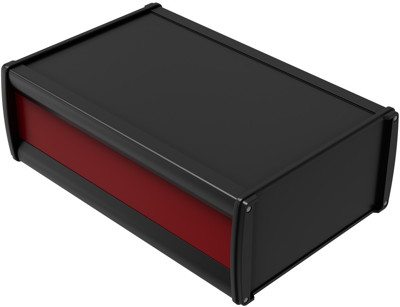

Aluminum Profile enclosure, (L x W x H) 350 x 233 x 121 mm, black/red (RAL 9005), IP65, 007504012
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
113.5974 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
113.60 € *
Price list
Quantity
Price per unit*
1 pcs.
113.5974 €
5 pcs.
107.9211 €
10 pcs.
102.5185 €
50 pcs.
97.4015 €
*incl. VAT plus shipping costs
Subject to prior sale
Aluminum enclosures, type Rose NoVoTronic.
Aluminum profile enclosure system for data, PC and measuring and control technology, chip-free interior through externally arranged screw channels, integrated PCB guides, externally arranged function insert strips (except types 07.50 40 10/12); Material enclosure profile/lid: AW-AlMgSi/AC-AlSi 12 (Fe). Degree of protection: IP 65. Finish: powder coating. Color enclosure/function insert strips: deep black (RAL 9005)/ruby red (RAL 3003). Thermal resistance: -40 to +90 °C.
Technical attributes (type, outer dimensions/inner dimensions width, height (H), depth (D)): 07.50 40 12, W 233/200, H 121/105, D 350/330 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Length | 350 mm | |
| Width | 233 mm | |
| Height | 121 mm | |
| Colour | black/red | |
| RAL number | 9005 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
