007503011 | Rose

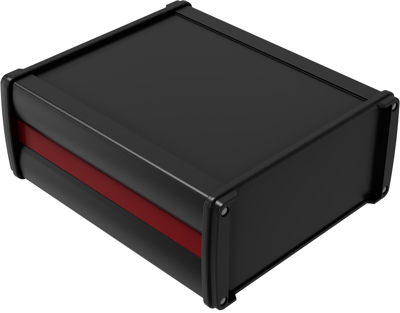

Aluminum Profile enclosure, (L x W x H) 220 x 190 x 90 mm, black/red (RAL 9005), IP65, 007503011
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
86.4773 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
86.48 € *
Price list
Quantity
Price per unit*
1 pcs.
86.4773 €
5 pcs.
82.1457 €
10 pcs.
78.0402 €
50 pcs.
74.1489 €
*incl. VAT plus shipping costs
Subject to prior sale
Aluminum enclosures, type Rose NoVoTronic.
Aluminum profile enclosure system for data, PC and measuring and control technology, chip-free interior through externally arranged screw channels, integrated PCB guides, externally arranged function insert strips (except types 07.50 40 10/12); Material enclosure profile/lid: AW-AlMgSi/AC-AlSi 12 (Fe). Degree of protection: IP 65. Finish: powder coating. Color enclosure/function insert strips: deep black (RAL 9005)/ruby red (RAL 3003). Thermal resistance: -40 to +90 °C.
Technical attributes (type, outer dimensions/inner dimensions width, height (H), depth (D)): 07.50 30 11, W 190/160, H 90/76, D 220/200 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Length | 220 mm | |
| Width | 190 mm | |
| Height | 90 mm | |
| Colour | black/red | |
| RAL number | 9005 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
