007502512 | Rose

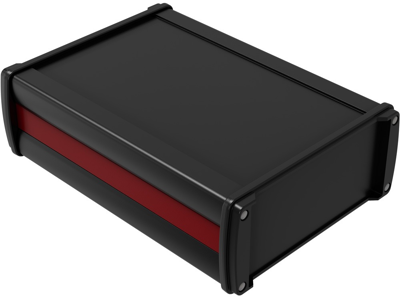

Aluminum Profile enclosure, (L x W x H) 220 x 157 x 69 mm, black/red (RAL 9005), IP65, 007502512

Order No.: 60H2558
EAN: 4099889518207
MPN:
007502512
Series: NOVO
007502512 Rose General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
69.7221 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
69.72 € *
Price list
Quantity
Price per unit*
1 pcs.
69.7221 €
5 pcs.
66.2354 €
10 pcs.
62.9272 €
50 pcs.
59.7856 €
*incl. VAT plus shipping costs
Subject to prior sale

Aluminum enclosures, type Rose NoVoTronic.

Aluminum profile enclosure system for data, PC and measuring and control technology, chip-free interior through externally arranged screw channels, integrated PCB guides, externally arranged function insert strips (except types 07.50 40 10/12); Material enclosure profile/lid: AW-AlMgSi/AC-AlSi 12 (Fe). Degree of protection: IP 65. Finish: powder coating. Color enclosure/function insert strips: deep black (RAL 9005)/ruby red (RAL 3003). Thermal resistance: -40 to +90 °C.

Technical attributes (type, outer dimensions/inner dimensions width, height (H), depth (D)): 07.50 25 12, W 157/130, H 69/57, D 220/200 mm

Technical specifications
Filter Property Value
Material aluminum
Width 157 mm
Degree of protection (IP) IP65
Length 220 mm
Height 69 mm
RAL number 9005
Colour black/red
Logistics
Property Value
Customs tariff number 85369095
Country of origin HU
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
