007501010 | Rose

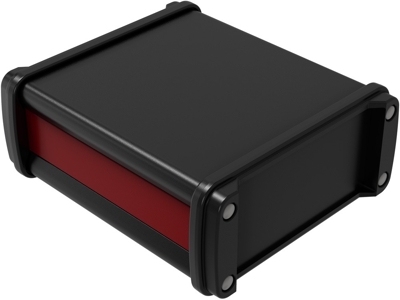

Aluminum Profile enclosure, (L x W x H) 120 x 106 x 49 mm, black/red (RAL 9005), IP65, 007501010
Unit Price (€ / pc.)
35.0693 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
35.07 € *
Price list
Quantity
Price per unit*
1 pcs.
35.0693 €
5 pcs.
33.3200 €
10 pcs.
31.6540 €
50 pcs.
30.0713 €
*incl. VAT plus shipping costs
Subject to prior sale
Aluminum enclosures, type Rose NoVoTronic.
Aluminum profile enclosure system for data, PC and measuring and control technology, chip-free interior through externally arranged screw channels, integrated PCB guides, externally arranged function insert strips (except types 07.50 40 10/12); Material enclosure profile/lid: AW-AlMgSi/AC-AlSi 12 (Fe). Degree of protection: IP 65. Finish: powder coating. Color enclosure/function insert strips: deep black (RAL 9005)/ruby red (RAL 3003). Thermal resistance: -40 to +90 °C.
Technical attributes (type, outer dimensions/inner dimensions width, height (H), depth (D)): 07.50 10 10, W 106/80, H 49/36, D 120/100 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 106 mm | |
| Colour | black/red | |
| Degree of protection (IP) | IP65 | |
| Length | 120 mm | |
| Material | aluminum | |
| Height | 49 mm | |
| RAL number | 9005 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
