BD6221F-E2 | Rohm Semiconductor

BD6221F-E2, 18 V, 1,0 A, SOP-8

Order No.: 34S1002
MPN:
BD6221F-E2
Series: BD62xx
BD6221F-E2 Rohm Semiconductor Motor Control ICs

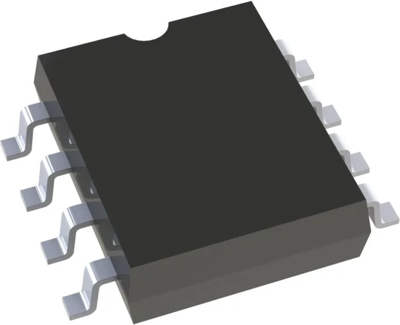

Image may differ
Unit Price (€ / pc.)
2.9869 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.9869 €

Brush Motor Driver, BD6221F-E2, Rohm Semiconductor

This H-bridge driver is full bridge driver for brush motor applications. Each IC can operate at a power supply voltage range of 6V to 15V, with output currents of up to 2A. MOS transistors in the output stage allow PWM speed control. The integrated VREF voltage control function allows direct replacement of discontinued motor driver ICs. This highly efficient H-bridge driver ICs facilitate low-power consumption design.

Features

  • VREF Voltage Setting Pin Enables PWM Duty Control
  • Cross-Conduction Prevention Circuit

Applications

  • Audio-visual equipment
  • Optical disc drives
  • PC peripherals
  • OA equipments
Technical specifications
Filter Property Value
Assembly SMD
max. operating temperature 85 °C
Output current 1 A
Enclosure SOP-8
min. operating temperature -40 °C
Logistics
Property Value
Country of origin PH
Customs tariff number 85423390
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
