BU33TD3WG-TR | Rohm Semiconductor

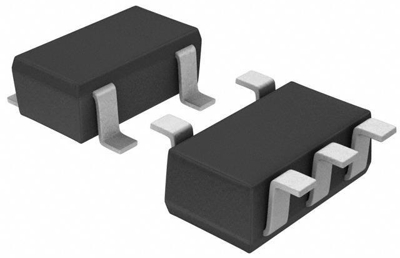

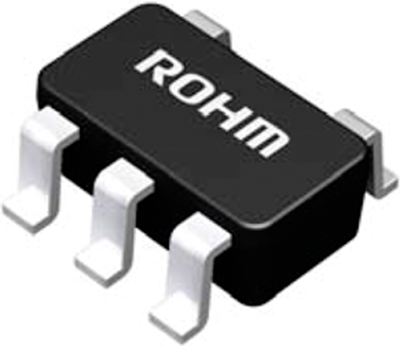

Voltage regulator, 3.3 VDC, 200 mA, positive, SSOP-5, BU33TD3WG-TR
Order No.: 34S1046
EAN: 4099879097651
MPN:
BU33TD3WG-TR
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 2 Weeks
Voltage regulator, BU33TD3WG-TR, ROHM
The BU33TD3WG-TR is a high-performance FULL CMOS regulator with 200-mA output, which is mounted on versatile package SSOP5 (2.9 mm × 2.8 mm × 1.25 mm). It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 35 μA. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.ROHM’s.
Features
- High accuracy detection
- Compatible with small ceramic capacitor
- With built-in output discharge circuit
- With built-in over current protection circuit and thermal shutdown circuit
Applications
- Battery-powered portable equipment, etc
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SSOP-5 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 1.7-6 V | |
| Output voltage DC | 3.3 VDC | |
| Output current | 200 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 3,000 pieces |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
