BA7812FP-E2 | Rohm Semiconductor

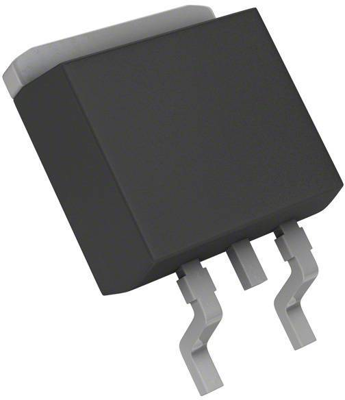

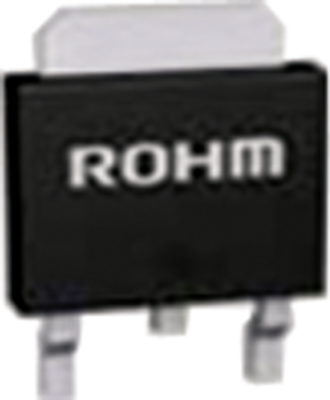

Voltage regulator, 12 VDC, 1 A, positive, TO-252, BA7812FP-E2
Order No.: 34S1074
EAN: 4099879097699
MPN:
BA7812FP-E2
Unit Price (€ / pc.)
0.1809 € *
Available: 593 pcs.
Voltage regulator, BA7812FP-E2, ROHM
The BA7812FP-E2 is a three-terminal regulator available with several fixed output voltages. It supplies the stable fixes voltage from unstable direct input voltage.
Features
- High ripple rejection
- Built-in overvoltage protection circuit
- Thermal shutdown circuit
Applications
- Fixed voltage power supply for TV, Audio components, etc
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | TO-252 | |
| Version | fixed | |
| Number of Regulators | 1 | |
| Input voltage AC | 14.5-27 V | |
| Output voltage DC | 12 VDC | |
| Output current | 1 A | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
