SML-M13UT | Rohm Semiconductor
LED, SMD, 0805, red, 620 nm, 0.12 cd, 120°, SML-M13UT
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Next delivery: 990 pcs. on 2024-05-08
Leadtime: On Request **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5831 €
100 pcs.
0.4641 €
500 pcs.
0.3927 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale

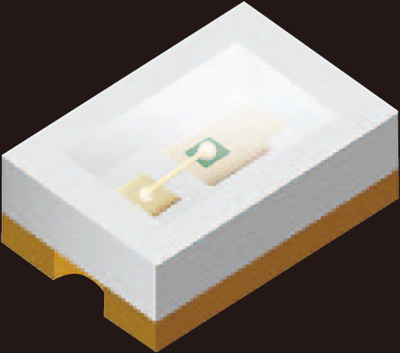

SMD LEDs 0805, type ROHM SML-M13.
With clear translucent lens; Dimensions: 2.0 x 1.25 x 0.8 mm.
Technical attributes (type, emission color, wavelength, luminosity (min./typical) at 20 mA): SML-M13UT, red, 625 nm, 63/120 mcd
Technical specifications
| Radiation angle | 120 ° | |
| Number of LEDs | 1 | |
| Width | 1.25 mm | |
| On-State Voltage | 2 V | |
| Forward Current | 20 mA | |
| Colour of the LED | red | |
| Enclosure | 0805 | |
| Length | 2 mm | |
| Light intensity typ. | 0.12 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 620 nm |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
