SML-210LTT86 | Rohm Semiconductor

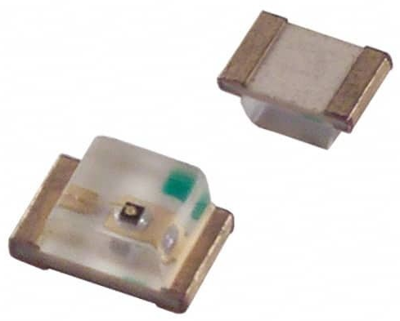

LED, SMD, 0603, red, 660 nm, 0.04 cd, SML-210LTT86
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 2 Weeks
SMD LEDs, type SML-210.
With clear translucent lens; Rated current: 20 mA. Dimensions: 2.0 x 2.5 x 0.8 mm.
Technical attributes (type, emission color, wavelength, luminous intensity (min./typical), manufacturer): SML-210LT, red, 660 nm, 14/40 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 660 nm | |
| max. operating temperature | 85 °C | |
| Length | 2 mm | |
| min. operating temperature | -30 °C | |
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Width | 1.25 mm | |
| On-State Voltage | 2.5 V | |
| Colour of the LED | red | |
| Lens | clear | |
| Light intensity typ. | 0.04 cd | |
| Enclosure | 0603 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
