SLR-56VR3F | Rohm Semiconductor

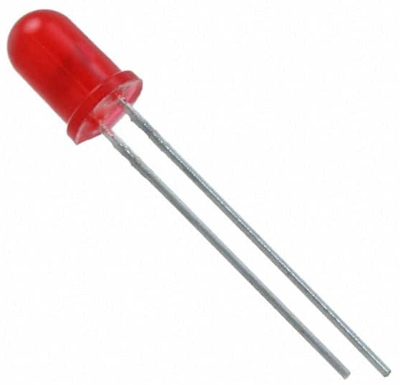

LED, THT, Ø 5 mm, red, 630 nm, 0.01 cd, 40°, SLR-56VR3F
Unit Price (€ / pc.)
0.5236 € *
Available: 279 pcs.
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5236 €
50 pcs.
0.4284 €
250 pcs.
0.3570 €
1000 pcs.
0.3070 €
2500 pcs.
0.2713 €
*incl. VAT plus shipping costs
Subject to prior sale
LEDs, round, 5.0 mm, type Rohm SLR-56.
With clear translucent lens Radiation angle: 40°.
Technical attributes (type, emission color, wavelength, luminous intensity min./typical (at 10 mA)): SLR-56VR3F, red, 630 nm, 3.6/10 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| On-State Voltage | 2 V | |
| Assembly | THT | |
| diameter | 5 mm | |
| Width | 5 mm | |
| Forward Current | 10 mA | |
| Length | 8.7 mm | |
| Wavelength | 630 nm | |
| Number of LEDs | 1 | |
| min. operating temperature | -20 °C | |
| Lens | clear | |
| Colour of the LED | red | |
| max. operating temperature | 85 °C | |
| Radiation angle | 40 ° | |
| Light intensity typ. | 0.01 cd |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
