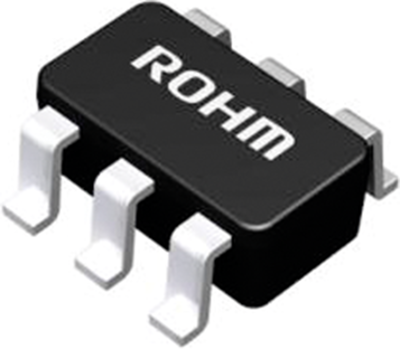

BD9G101G-TR | Rohm Semiconductor
Step-down switching mode regulator, 1 V, SSOP6, positive
Order No.: 34S1004
EAN: 4099879089908
MPN:
BD9G101G-TR
Unit Price (€ / pc.)
1.1424 € *
Available: 13 pcs.
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
10 pcs.
1.0472 €
100 pcs.
0.9163 €
1000 pcs.
0.8211 €
3000 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
Switching regulator, BD9G101G-TR, ROHM
The BD9G101G-TR is a high voltage input 42 V step-down switching regulator with integrated internal Power MOSFET. It is allowing the use of small inductor by high frequency operation of 1.5 MHz. Also, it is implemented to downsize by incorporation of phase compensation parts with current mode.
Features
- Over Current protection
- Under Voltage Lockout Protection
- Thermal shutdown
- Stand-by function
Applications
- Industrial distributed power applications
- Battery powered equipment
- OA instruments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| Input voltage AC | 6-42 V | |
| Input voltage | 42 V | |
| min. operating temperature | -40 °C | |
| Enclosure | SSOP-6 | |
| Output current | 500 mA | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
