BD93291EFJ-E2 | Rohm Semiconductor
Dual synchronous buck converter, HTSOP-J8
 Order No.: 34S1048
  EAN: 4099879089915
  MPN:
  BD93291EFJ-E2
 Unit Price (€ / pc.)
   1.2138 €  *
   Standard delivery time from the manufacturer is: 2 Weeks

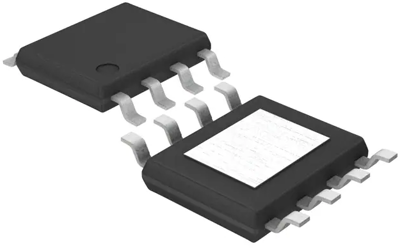

 Dual Synchronous Buck Converter, BD93291EFJ-E2, ROHM
The BD93291EFJ-E2 is a dual synchronous buck converter. It incorporates a new technology called H3Reg, a Rohm proprietary control method which facilitates ultra-high transient response against changes in load. SLLM (Simple Light Load Mode) technology is also integrated to improve efficiency when powering lighter loads. For protection and ease of use, the IC also incorporates soft start. Space-saving and high efficient switching regulator can be achieved due to built-in N-MOSFET power transistor.
Features
- Over Current protection
- Under Voltage Lockout Protection
- Thermal shutdown
- Stand-by function
Applications
- Distributed Power System
- Pre-Regulator for Linear Regulator
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Output current | 1.7 A | |
| Input voltage | 28 V | |
| Input voltage AC | 8-26 V | |
| Enclosure | HTSOP-J-8 |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Original Packaging | Reel with 2,500 pieces |
| Country of origin | PH |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
