IMD16AT108 | Rohm Semiconductor

Dual digital transistor, NPN/PNP, -100 mA, 50 V, SMD, SOT-457, IMD16AT108

Order No.: 24S2928
MPN:
IMD16AT108
Series: IMD
IMD16AT108 Rohm Semiconductor Bipolar Transistors

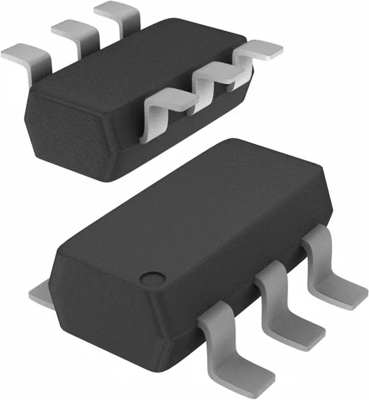

Image may differ
Unit Price (€ / pc.)
0.7259 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.7259 €

Dual Digital Transistor, IMD16AT108, Rohm Semiconductor

Device integrating two transistor in ultra-compact package, suitable for various application such as pre-amplifier differential amplification circuit, high-frequency oscillator, driver IC and so forth.

Features

  • Ultra-compact complex bipolar transistor
  • Input resistor type
  • Small Surface Mount Package
  • Pb Free/RoHS Compliant
Technical specifications
Filter Property Value
Power dissipation 300 mW
Assembly SMD
max.voltage between collector and base Vcbo 50 V
Transit frequency fTmin 250 MHz
max. operating temperature 150 °C
Version NPN/PNP
Enclosure SOT-457
Collector current -100 mA
Min DC gain 82 mA
Saturation voltage -50 V
min. operating temperature -55 °C
max.voltage between collector and emitter Vceo 50 V
Logistics
Property Value
Country of origin PH
Customs tariff number 85419000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 6/8/11
RoHS conform Yes
