BD9G101G-TR | Rohm Semiconductor

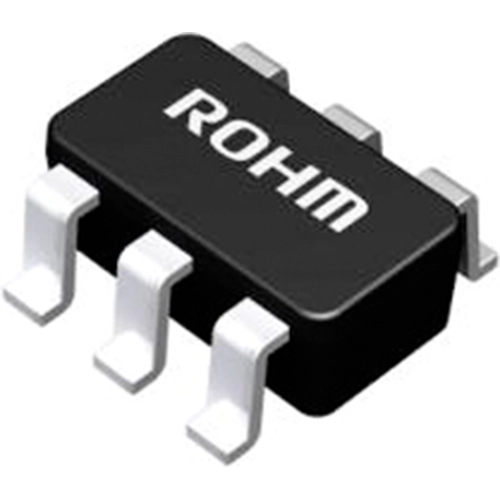

Voltage regulators, 500 mA, SSOP-6, Rohm Semiconductor BD9G101G-TR
Order No.: 34S1004
EAN: 4099879089908
MPN:
BD9G101G-TR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.3447 € *
Standard delivery time from the manufacturer is: 2 Weeks
Switching regulator, BD9G101G-TR, ROHM
The BD9G101G-TR is a high voltage input 42 V step-down switching regulator with integrated internal Power MOSFET. It is allowing the use of small inductor by high frequency operation of 1.5 MHz. Also, it is implemented to downsize by incorporation of phase compensation parts with current mode.
Features
- Over Current protection
- Under Voltage Lockout Protection
- Thermal shutdown
- Stand-by function
Applications
- Industrial distributed power applications
- Battery powered equipment
- OA instruments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 42 V | |
| Enclosure | SSOP-6 | |
| Assembly | SMD | |
| max. operating temperature | 105 °C | |
| Output current | 500 mA | |
| Input voltage AC | 6-42 V | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
