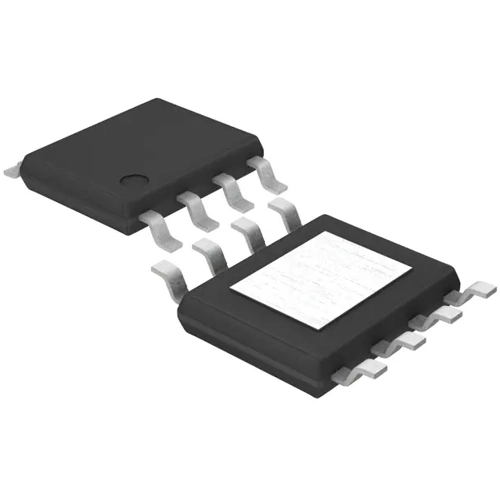

BD93291EFJ-E2 | Rohm Semiconductor
Voltage regulators, 1.7 A, HTSOP-J-8, Rohm Semiconductor BD93291EFJ-E2
Order No.: 34S1048
EAN: 4099879089915
MPN:
BD93291EFJ-E2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 2 Weeks
Dual Synchronous Buck Converter, BD93291EFJ-E2, ROHM
The BD93291EFJ-E2 is a dual synchronous buck converter. It incorporates a new technology called H3Reg, a Rohm proprietary control method which facilitates ultra-high transient response against changes in load. SLLM (Simple Light Load Mode) technology is also integrated to improve efficiency when powering lighter loads. For protection and ease of use, the IC also incorporates soft start. Space-saving and high efficient switching regulator can be achieved due to built-in N-MOSFET power transistor.
Features
- Over Current protection
- Under Voltage Lockout Protection
- Thermal shutdown
- Stand-by function
Applications
- Distributed Power System
- Pre-Regulator for Linear Regulator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Input voltage | 28 V | |
| Enclosure | HTSOP-J-8 | |
| Assembly | SMD | |
| max. operating temperature | 85 °C | |
| Output current | 1.7 A | |
| Input voltage AC | 8-26 V | |
| min. operating temperature | -40 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
