5601.3800.03 | Rohde & Schwarz

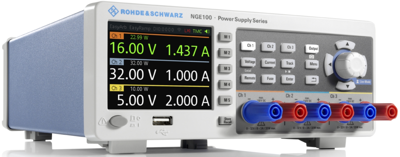

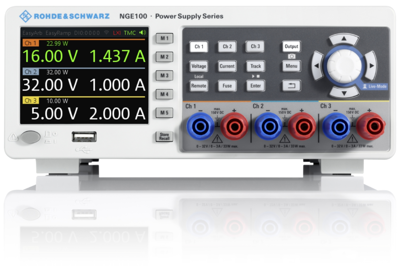

Laboratory power supply, 32 VDC, outputs: 3 (3 A/3 A/3 A), 0 to 3 A, 100 W, 115-230 VAC, 5601.3800.03
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1,392.30 € *
Standard delivery time from the manufacturer is: 2 Weeks
Power Supply, 5601.3800.03, Rohde & Schwarz
Features
- R&S®NGE102B with two or R&S®NGE103B with three channels
- Max. output power of 66 W with R&S®NGE102B, 100 W with R&S®NGE103B
- Max. output voltage of 32 V per channel
- Electronic fuse (OCP), overvoltage (OVP)/ overpower (OPP)/ overtemperature protection (OTP)
- USB interface (VCP/TMC), optional LAN (LXI), optional wireless LAN, optional digital I/O (4bit)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 32 VDC | |
| Output current | 3 A | |
| Output current 2 | 3 A | |
| Output current 3 | 3 A | |
| Range of Output Currence | 0 to 3 A | |
| Power | 100 W | |
| Input voltage AC | 115-230 VAC | |
| Number of outputs | 3 | |
| Width | 222 mm | |
| Height | 97 mm | |
| Depth | 310 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
