HRN-31 | RO/SE
Voltage guard, 48-276 V AC/DC, 16 A, 24 V (DC), 250 V (AC), HRN-31
Order No.: 80H961
MPN:
HRN-31
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
57.1438 € *
Standard delivery time from the manufacturer is: On Request

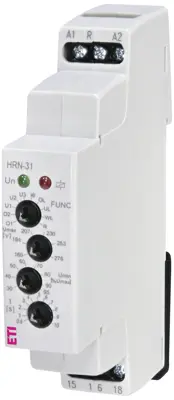

Voltage monitoring relay, HRN-31, RO/SE
Multifunctional voltage monitoring relay in 1P used to monitor the magnitude of the AC or DC voltage in single-phase circuits.
Features
- Power supply from the monitored voltage
- Voltage level (Umin) according to the selected function
- Adjustable time delay
- Possibility of selecting functions with fault status memory (latch)
- The fault status memory can be reset via the control input
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 48-276 V AC/DC | |
| switching current | 16 A | |
| Switching Voltage (DC) | 24 V | |
| Switching Voltage (AC) | 250 V | |
| Breaking capacity | 4000 VA | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
