S2.70 110-265 V AC/DC | RO/SE
Heater, 110-265 V AC/DC, 70 W, (L x W x H) 75 x 78 x 45 mm, S2.70 110-265 V AC/DC
Order No.: 80H810
EAN: 4099889578454
MPN:
S2.70 110-265 V AC/DC
Unit Price (€ / pc.)
50.0871 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
50.09 € *
Price list
Quantity
Price per unit*
1 pcs.
50.0871 €
5 pcs.
47.5881 €
10 pcs.
45.6841 €
*incl. VAT plus shipping costs
Subject to prior sale

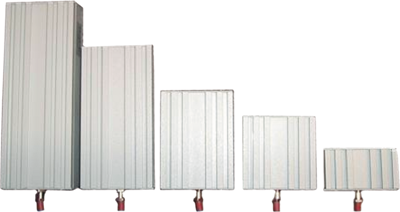

>Control cabinet heater, S2.70 110-265 V AC/DC, RO/SE
With cooling fin type heat convection on both sides (minimum panel thickness = 1.5 mm), for vertical and horizontal use, low mounting depth, variable snap-on mounting on DIN rail; Operating voltage: 110 to 265 V AC/DC. Degree of protection: IP 20. Case: aluminum, surface finished. Connection: 3 x 0.75 mm² heat-resistant cable (0.5 m) with metal strain relief. Fastening: aluminum clip for 35 mm DIN rail. Operating temperatures: -40 to +80 °C.
Size 75 x 78 x 45 mm, type S2.
Technical attributes (type, power): S2.70, 70 W
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 110-265 V AC/DC, 70 W | |
| Degree of protection (IP) | IP20 | |
| Height | 45 mm | |
| Width | 78 mm | |
| Length | 75 mm | |
| Product type | heater |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85162999 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
