102949 | Riegler
2/2-way solenoid valve, NO, 0.2-16 bar, 240 V, 102949
Order No.: 63G516
EAN: 4047322159562
MPN:
102949
MV 1383
Unit Price (€ / pc.)
141.8242 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
141.82 € *
Price list
Quantity
Price per unit*
1 pcs.
141.8242 €
3 pcs.
137.6592 €
5 pcs.
133.7203 €
*incl. VAT plus shipping costs
Subject to prior sale

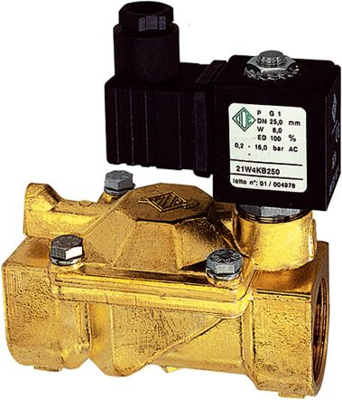

Solenoid valve, 102949, Riegler
The 102949 is a pilot-operated diaphragm valve with a compact design, easy installation and short response time. The media valve for shutting off gaseous or liquid media that are compatible with the materials used, the high-quality materials used for the valves and extensive testing guarantee a long service life.
Features
- The valves do not require a minimum operating pressure
- Any mounting position
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pressure range | 0.2-16 bar | |
| Rated voltage | 240 V | |
| Connection | cable plug PG 9/PG 11 | |
| Version | 2/2-way solenoid valve, NO | |
| Nominal width | 19 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84818099 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
