194140 | Riegler
Compressed air hose, 4 x 1 mm, blue, L 25 m, 49 bar, PA, for pneumatics, hydraulics and other supply lines, 194140
Order No.: 63G278
EAN: 4047322686488
MPN:
194140
259.09 B-V2
Unit Price (€ / mtr.)
1.1781 € *
Available in 3 Days: 42 mtr. - if ordered today
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
1 mtr.
1.1781 €
10 mtr.
1.0829 €
25 mtr.
0.9877 €
50 mtr.
0.9282 €
100 mtr.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

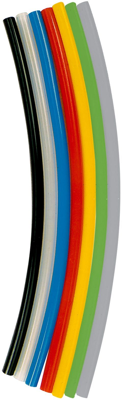

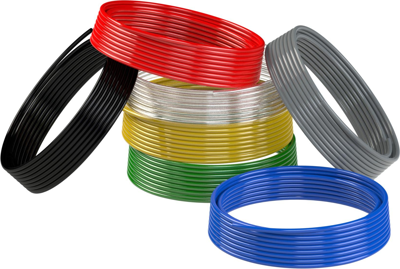

Polyamide hose, 194140, Riegler
The polyamide hose (PA 12 HIPHL) is designed to withstand temperatures ranging from -40 °C to 130 °C. With a hose diameter of 4x1, it can handle a maximum pressure of 49 bar at 23 °C. The hose comes in a natural (milky) color (blue) and is in a 25 m roll. PA 12 has a low water absorptive capacity and is therefore dimensionally stable if the ambient humidity varies. PA 12 resists greases, oil, fuels, hydraulic fluids, alkalis and salt solutions. Sufficient UV resistance can only be guaranteed if the material is pigmented black! Suitable for use with push-in fittings as externally calibrated. Suitable for vacuum up to 12x9 mm.
Applications
- Compressed air lines (low-pressure range) in industry and manual trades
- Hydraulic lines (miniature hydraulics) in instrumentation and control
- Lines for liquid and free-flowing substances
- Pneumatic braking systems in motor vehicles and trailers
- Fuel and lubricant supply systems
- Vacuum lines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | compressed air hose | |
| Suitable for | pneumatics, hydraulics and other supply lines | |
| Material | PA | |
| Length | 25 m | |
| Pressure | 49 bar | |
| Version | 4 x 1 mm, blue |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 25 meters |
| Country of origin | IT |
| Customs tariff number | 39172900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
