134441 | Riegler
Reducer piece, L 14 mm, 25 bar, brass, for pipe systems, 134441
Order No.: 63G311
EAN: 4047322486835
MPN:
134441
MS251K1418
Unit Price (€ / pc.)
1.3328 € *
Available: 30 pcs.
Available in 3 Days: 4,957 pcs. - if ordered today
Total Price:
1.33 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3328 €
5 pcs.
1.2138 €
10 pcs.
1.0948 €
25 pcs.
1.0234 €
50 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale

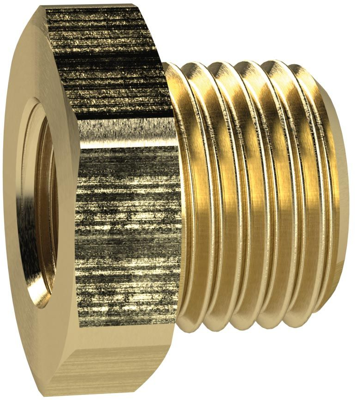

Reducing nipple, 134441, Riegler
The nipple size is decreased, featuring a compact design with G 1/4 external thread and G 1/8 internal thread, suitable for AF 17 fittings made of brass. The maximum working pressure is 25 bar, with a maximum operating temperature of 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reducing nipple | |
| Pressure | 25 bar | |
| Suitable for | pipe systems | |
| Thread size | G1/4, G1/8 | |
| Material | brass | |
| Length | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GR |
| Customs tariff number | 74122000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
