109883 | Riegler
Hose connector, L 52.5 mm, 10 bar, plastic/brass, for hose outer Ø 12 mm, 109883
Order No.: 63G198
EAN: 4047322028776
MPN:
109883
143.1012
Unit Price (€ / pc.)
4.2126 € *
Available in 3 Days: 329 pcs. - if ordered today
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
5 pcs.
3.9865 €
10 pcs.
3.7723 €
25 pcs.
3.5343 €
50 pcs.
3.3201 €
*incl. VAT plus shipping costs
Subject to prior sale
Straight push-in connector, 109883, Riegler
The red plug nipple with a straight push-in connector is designed for a hose with an exterior diameter of 10mm and a plug nipple size of 12. It has a maximum short-term pressure rating of 15 bar.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pressure | 10 bar | |
| Material | plastic/brass | |
| Suitable for | hose outer Ø 12 mm | |
| Medium | compressed air | |
| Product type | hose connector | |

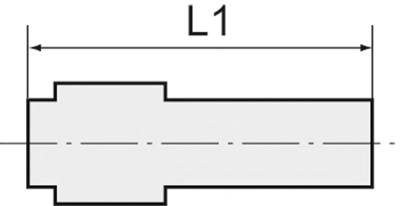

| Length | 52.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
