109261 | Riegler
L push-in fitting, L 18.8 mm, 10 bar, plastic/brass, for hose outer Ø 4 mm, 109261
Order No.: 63G239
EAN: 4047322023238
MPN:
109261
125.018-4
Unit Price (€ / pc.)
2.5942 € *
Available: 0 pcs.
Available in 3 Days: 4,845 pcs.
Leadtime: On Request **
Total Price:
2.59 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5942 €
5 pcs.
2.4514 €
10 pcs.
2.2729 €
25 pcs.
2.1182 €
50 pcs.
2.0230 €
*incl. VAT plus shipping costs
**Subject to prior sale

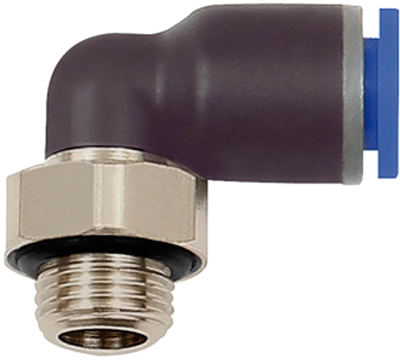

Push-in L-fitting, 109261, Riegler
The L-fitting for hose exterior Ø 4 mm, with a G 1/8 o. rotating connection, is designed for short-term maximum pressure of 15 bar.
Technical specifications
| Suitable for | hose outer Ø 4 mm | |
| Medium | compressed air | |
| Product type | L push-in fitting | |
| Material | plastic/brass | |
| Thread size | G1/8 | |
| Pressure | 10 bar | |
| Length | 18.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
