109114 | Riegler
Push-in fitting, L 19.3 mm, 10 bar, plastic/brass, for hose outer Ø 4 mm, 109114
Order No.: 63G215
EAN: 4047322022576
MPN:
109114
122.018-4
Unit Price (€ / pc.)
1.7017 € *
Available in 3 Days: 1,411 pcs. - if ordered today
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
5 pcs.
1.6065 €
10 pcs.
1.4875 €
25 pcs.
1.3923 €
50 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale

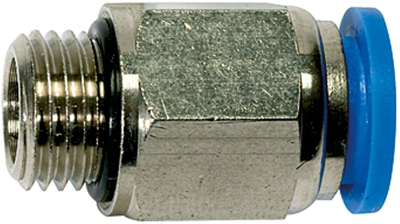

Straight push-in fitting, 109114, Riegler
This fitting is designed for a straight push-in connection, suitable for hoses with an outer diameter of 4 mm. It has a maximum pressure rating of 15 bar for short-term use and features a G 1/8 thread.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Medium | compressed air | |
| Product type | push-in fitting | |
| Thread size | G1/8 | |
| Suitable for | hose outer Ø 4 mm | |
| Material | plastic/brass | |

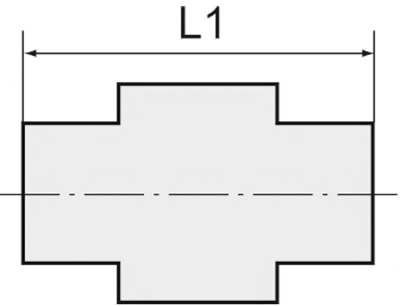

| Length | 19.3 mm | |
| Pressure | 10 bar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 39174000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
