107576 | Riegler
Final distribution box, L 156 mm, 12 bar, PA, for jacks, 107576
Order No.: 63G188
EAN: 4047322401722
MPN:
107576
EVDS12-2
Unit Price (€ / pc.)
88.8097 € *
Available in 3 Days: 146 pcs. - if ordered today
Total Price:
88.81 € *
Price list
Quantity
Price per unit*
1 pcs.
88.8097 €
5 pcs.
84.7042 €
10 pcs.
80.9795 €
*incl. VAT plus shipping costs
Subject to prior sale

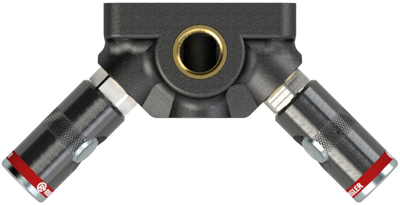

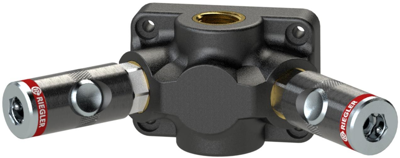

End distributor socket, 107576, Riegler
The distributor socket at the end features 2 safety couplings with an inner diameter of 7.4. It has an input of G1/2 and can withstand a maximum operating pressure of 12 bar. The temperature range for air is -10°C to 50°C, while for water it is 1°C to 50°C. All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape. Drilling diagram dimensions are identical for all distributor sockets, so a simpler and more flexible exchange replacement.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | final distribution box | |
| Pressure | 12 bar | |
| Suitable for | jacks | |
| Thread size | G1/2 | |
| Material | PA | |
| Length | 156 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84818099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
