107540 | Riegler

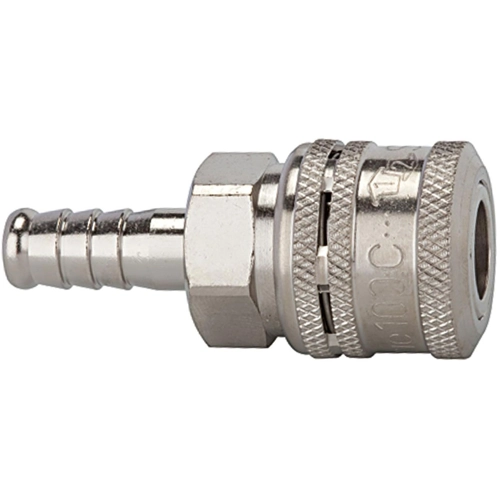

Safety coupling, L 60 mm, 10 bar, brass, nickel-plated, for hose, 107540
Order No.: 63G2989
EAN: 4047322216524
MPN:
107540
249.105
This item is no longer available.
As an alternative, we recommend the following item:
Safety coupling, L 58 mm, 35 bar, brass, nickel-plated, for hose, 129976
Order No.: 64G0517
Manufacturer: Riegler
per pc. 21.0392 € *
Safety coupling, 107540, Riegler
One-hand safety coupling with double locking mechanism. Connection: Similar to a standard coupling, simply by pressing the plug into the coupling. Disconnection: The first locking mechanism is accessible when the sleeve is pushed back. The coupling valve closes. Air can then be relieved from the plug side (hose). The second locking mechanism is released by actuating the unlocking sleeve again. The coupling can now be disconnected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | safety coupling | |
| Thread size | 13 mm | |
| Pressure | 10 bar | |
| Material | brass, nickel-plated | |
| Length | 60 mm | |
| Suitable for | hose |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84812090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
