107533 | Riegler

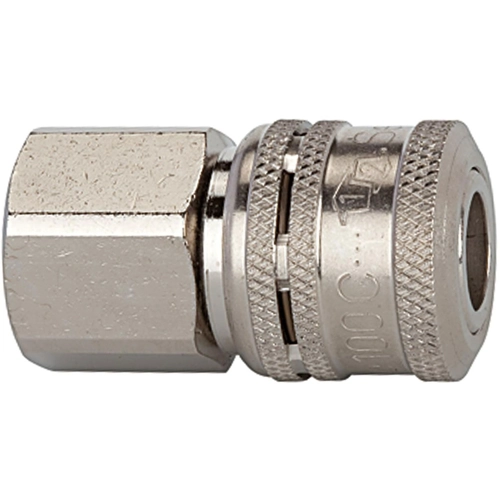

Safety coupling, L 46 mm, 10 bar, brass, nickel-plated, for hose, 107533
Order No.: 63G2985
EAN: 4047322216456
MPN:
107533
249.96
This item is no longer available.
As an alternative, we recommend the following item:
Safety coupling, with double locking, L 46 mm, 10 bar, brass, nickel-plated, 107533
Order No.: 64G0513
Manufacturer: Riegler
per pc. 18.8972 € *
Safety coupling, 107533, Riegler
One-hand safety coupling with double locking mechanism. Connection: Similar to a standard coupling, simply by pressing the plug into the coupling. Disconnection: The first locking mechanism is accessible when the sleeve is pushed back. The coupling valve closes. Air can then be relieved from the plug side (hose). The second locking mechanism is released by actuating the unlocking sleeve again. The coupling can now be disconnected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | safety coupling | |
| Thread size | G1/4 | |
| Pressure | 10 bar | |
| Material | brass, nickel-plated | |
| Length | 46 mm | |
| Suitable for | hose |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84812090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
