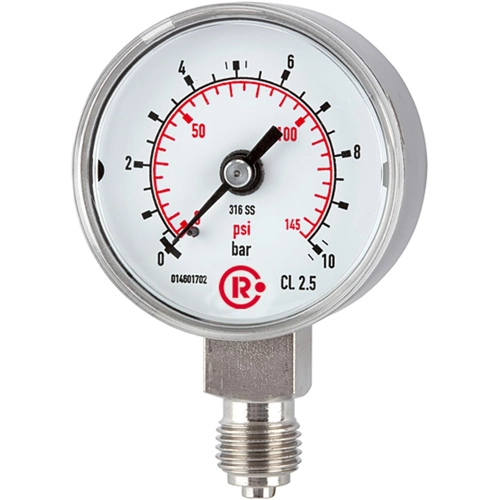

Standard pressure gauge, 102417, Riegler

The compact Bourdon tube pressure gauge is constructed with a case and wetted part made of stainless steel. The instrument meets the requirements of the international industry standard EN 837-1. The modular design enables a multitude of combinations of a process connection, nominal size and scale range. Due to this high variance, the instrument is suitable for use in a wide range of industrial applications. The instrument is frequently used as a failure alarm indicator on a gas cylinder. With its compact design and moderate purchase cost, the pressure gauge also qualifies for a machine-building or plant-construction application. Due to the use of high-quality stainless steel material and its robust design, the instrument is suitable for a liquid or gaseous medium, also in an aggressive environment. For mounting in a control panel, the pressure gauge can be fitted with a surface mounting flange or with a triangular bezel and mounting bracket.

Features

• Case and wetted parts from stainless steel
• Cost-effective and reliable

Applications

• For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
• Machine building and general plant construction
• Indication of failure alarm on gas cylinders
• CDA (clean dry air) applications
