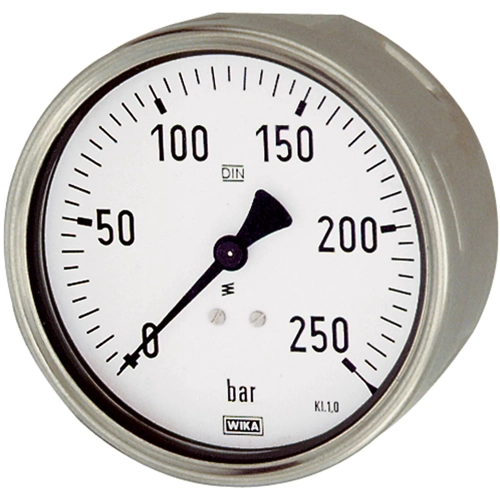

Pressure gauge, 102059, Riegler

The mechanical Bourdon tube pressure gauge is constructed with a case made of stainless steel and wetted parts made of copper alloy. The 102059 meets the requirements of the international industry standard EN 837-1 for a Bourdon tube pressure gauge. A frequent measuring point is found in machine building, plant construction and the building services industry. The 102059 can also be used in a refrigeration application. The case is available in a nominal size of 100 mm and fulfils IP54 ingress protection. With an accuracy class of 1.0, this pressure gauge is suitable for the process industry. The modular design enables a multitude of combinations of a process connection, nominal size and scale range. This high variance enables universal use of the instrument in the industrial sector. For mounting in a control panel, the pressure gauge can be fitted with a mounting flange or with a triangular bezel and mounting bracket.

Features

• Durable and robust
• Cost-effective and reliable
• To combine with WIKA diaphragm seals
• German Lloyd approval

Applications

• Machine building and plant construction
• Building services
• Refrigeration technology
• For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
