PR100281 | Revolution Pi
Extension module, power supply via ConBridge, PR100281
Order No.: 81P9413
EAN: 4260498390991
MPN:
PR100281
100281
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
138.9563 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
138.96 € *
Price list
Quantity
Price per unit*
1 pcs.
138.9563 €
3 pcs.
135.1245 €
5 pcs.
131.4950 €
*incl. VAT plus shipping costs
Subject to prior sale

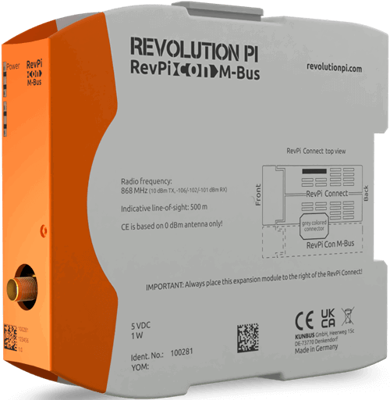

Extension module, PR100281, Revolution Pi
By using RevPi Con M-Bus you can equip your RevPi Connect with 868 MHz Wireless M-Bus. The expansion module has an SMA socket at the front for connecting an antenna (antenna not included in the scope of delivery). This expansion module is supplied with power directly via the overhead connector (item no. 100297) and does not require an additional voltage source. The overhead connector (item no.: 100297) for connection to the base unit is included in the scope of delivery of the expansion module.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | extension module, 868 MHz, RF data rate 4.8/32/100 kbps | |
| Control Voltage | power supply via ConBridge | |
| Assembly | DIN rail | |
| Width | 22.5 mm | |
| Height | 96 mm | |
| Depth | 110.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84714900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
