8728 0000 6 | Rennsteig Werkzeuge

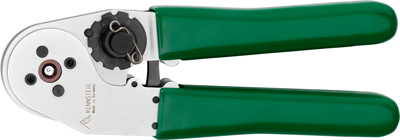

Four-mandrel crimping pliers for turned pin and socket contacts, 0.08-1.3 mm², AWG 28-16, Rennsteig Werkzeuge 8728 0000 6
Order No.: 05L8360
EAN: 4049002101281
MPN:
8728 0000 6
Crimpwerkzeug 8.72-8
Unit Price (€ / pc.)
332.5693 € *
Standard delivery time from the manufacturer is: On Request
Four indent crimp tools SelectorCrimp, type Rennsteig 87.
For crimping turned male and female contacts, reliable crimping thanks to positive lock and synchronous drive of the indenters, indenter geometry to MIL 22520, indenter synchronization with 8 positions to MIL, optimized opening width, ergonomic design and reduce hand force.
Technical attributes (type, capacity, max. contact diameter, weight): 8728 0000 6, 0,08 to 1.3 mm², AWG 28 to 16, Ø 4.0 mm, 850 g
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | turned pin and socket contacts | |
| Crimping Range (mm²) | 0.08-1.3 mm² | |
| Crimping Range (AWG) | AWG 28-16 | |
| Length | 175 mm | |
| Weight | 850 g |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
