R9A09G011GBG#ACC | Renesas
MPU RZ/V 996MHZ 841FBGA R9A09G011GBG#ACC
NCNR (non cancelable / non returnable)

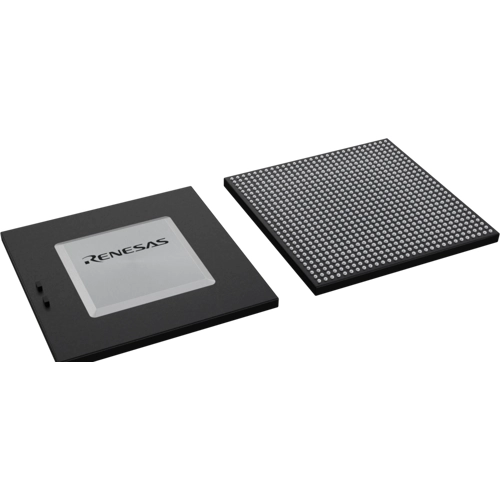

LSI chip, R9A09G011GBG#ACC, Renesas
This LSI chip includes the AI dedicated accelerator (DRP-AI) and 4K-compatible image signal processor (ISP). This processor is vision-AI ASSP for real-time human and object recognition. The AI dedicated hardware IP, DRP-AI, configured with the dynamic reconfigurable processor (DRP) and AI-MAC, combines both a high-speed AI inference and low power consumption and realizes 1TOPS/W class power performance. In addition, the image signal processor (ISP) is highly robust, producing a stable image independent of the environment, allowing for a high AI recognition accuracy. With these features, this LSI realizes low power consumption, which is a critical factor for embedded devices, making heat dissipation measures easier.
Features
- CPU and DDR Memory Interfaces
- Video and Graphics, Display
- High Speed Interfaces
- Hardware Security Engine provided
| Filter | Property | Value |
|---|---|---|
| Enclosure | FBGA-841 | |
| Assembly | SMD | |
| Processor core | 2 | |
| Core Size | 64 | |
| Number of I/Os | 117 | |
| Data RAM Size | 1200 KB | |
| Voltage | 3.135-3.465 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
| Property | Value |
|---|---|
| Customs tariff number | 85423190 |
| Country of origin | TW |
| MSL | MSL 3 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
