CUB7TCG0 | Red Lion
Operation-hour counter CUB7TCG0
Unit Price (€ / pc.)
120.19 € *
Standard delivery time from the manufacturer is: 1 Week
Operation-hour counter, CUB7TCG0, Red Lion
The CUB 7T records the operating time of machines and plants. Depending on the version, control is via a switching contact or an applied voltage. The CUB 7T has 9 different time ranges which are set via the front keys. A reset is possible via the front key and an external input. The sensor connection is made via cable ends or via optional terminal strips. CUB7TCG0 with internal battery, signal voltage: max. 28 VDC Display: green backlit LCD (only via external power supply), timer runs when input is "low"
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | wire connection | |

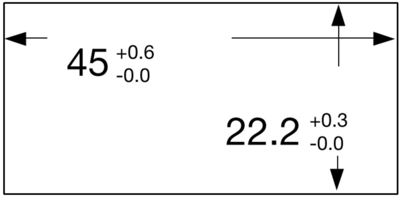

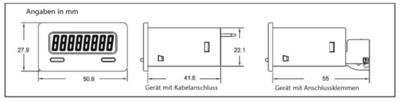

| Width | 45 mm | |
| Degree of protection (IP) | IP66 | |
| Accuracy | 0.01 h | |
| Assembly | built-in mounting | |
| Height | 22.2 mm | |
| Voltage | 26 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 90291000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
