RCD-24-0.70 | RECOM

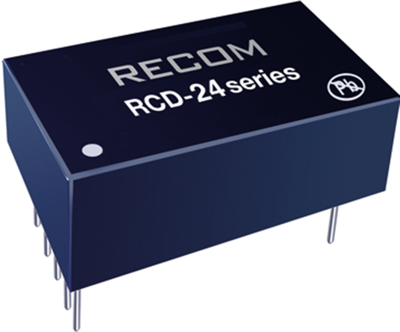

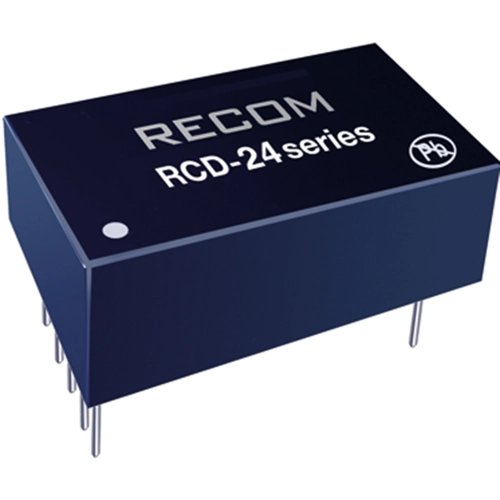

LED driver, RCD-24-0.70
Unit Price (€ / pc.)
18.5402 € *
Available: 75 pcs.
Total Price:
18.54 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5402 €
10 pcs.
16.3268 €
39 pcs.
15.4581 €
156 pcs.
14.5656 €
624 pcs.
13.6612 €
*incl. VAT plus shipping costs
Subject to prior sale
LED drivers, type Recom RCD-24.
DC-DC converter as constant current LED driver, UL/Railways certified, for PCB connection, short circuit- and thermal overload protection; Certifications: EN-50121-3-2, EN-60950-1, UL-60950-1. Dimmer function: PWM and analog. Residual ripple: 300 to 700 mA/1000 to 1200 mA, 150 mVpp/300 mVpp. Efficiency: max. 96 %. Dimensions: 22.1 x 12.55 x 8.5 mm,
Technical attributes (type, input voltage range, output current, output voltage): RCD-24-0.70, 4.5 to 36 V, 700 mA, 2.0 to 35 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Rated current | 700 mA | |
| Version | LED driver | |
| Assembly | THT | |
| Rated voltage | 36 V | |
| Length | 22.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
| Original Packaging | Bar with 39 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
